Introduction:

RCOG-28V multi-functional drilling and milling machine has rich functions, can meet the metal, wood, plastic, Buddha beads and other finishing, all copper brushless motor, strong power, simple operation, durable, high processing accuracy, is the home DIY processing of various parts of the necessary machine.



Parameter:

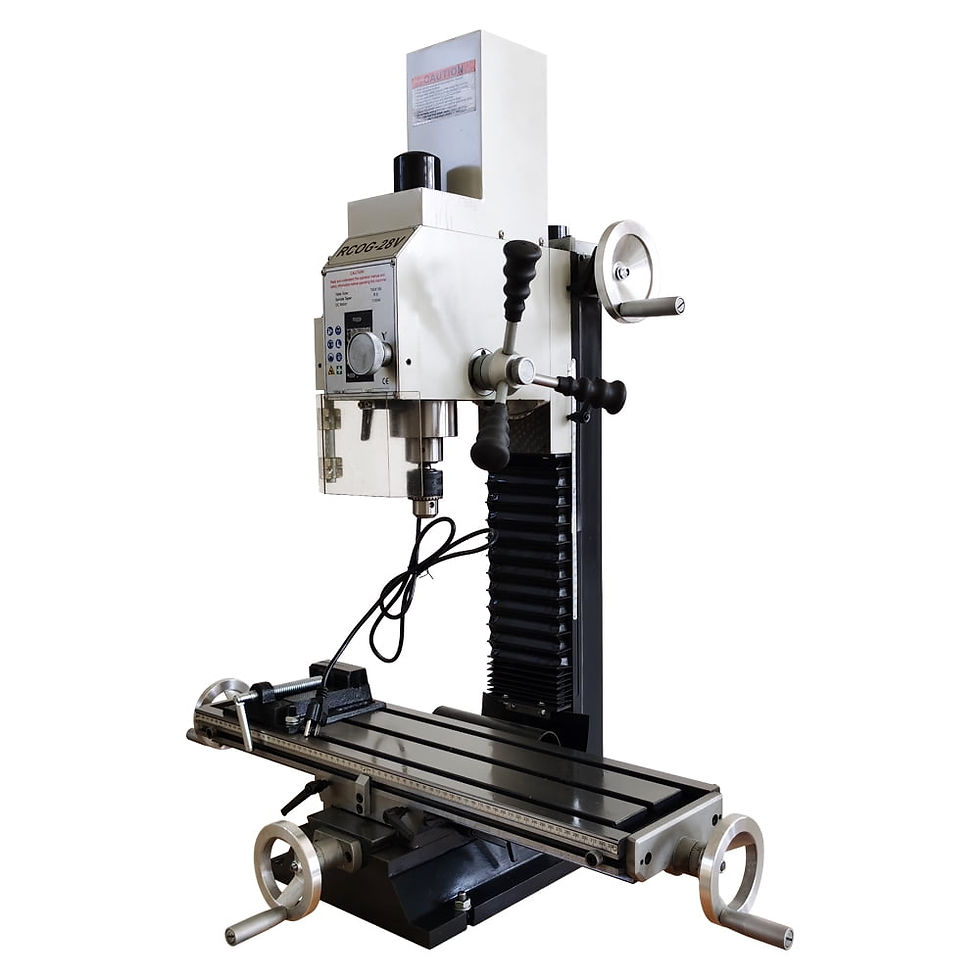

Model: RCOG-28V

Voltage: AC110V/60Hz

Motor power: 1300W brushless motor

X axis stroke: 18.9"(480mm)

Y axis stroke: 6.9"(175mm)

Z axis stroke: 11"(280mm)

Spindle incline Angle: ±90°(The nose can actually rotate 360 degrees)

Max. drilling diameter: 1.1"(28mm)

Max. Face screening capacity: 2.5"(63mm)

Max. vertical milling capacity: 0.79"(20mm)

Distance from spindle to table:  13.8"(350mm)

Spindle taper: R8

Spindle stroke: 2"(52mm)

The Range of spindle speeds: 20-2250rpm

Table size: 27.5"*7.1"(700mm*180mm)

T groove width: 0.47"(12mm)

Package size: 35.4"*22.4"*37.8"(90cm*57cm*96cm)

Net weight/Gross weight: 260.1LB(118kg)/313.0LB(142kg)

Items Included: 028356

Drilling and milling machine *1

Milling chuck set *1

Drill chuck *1

Drill chuck retaining pin *1

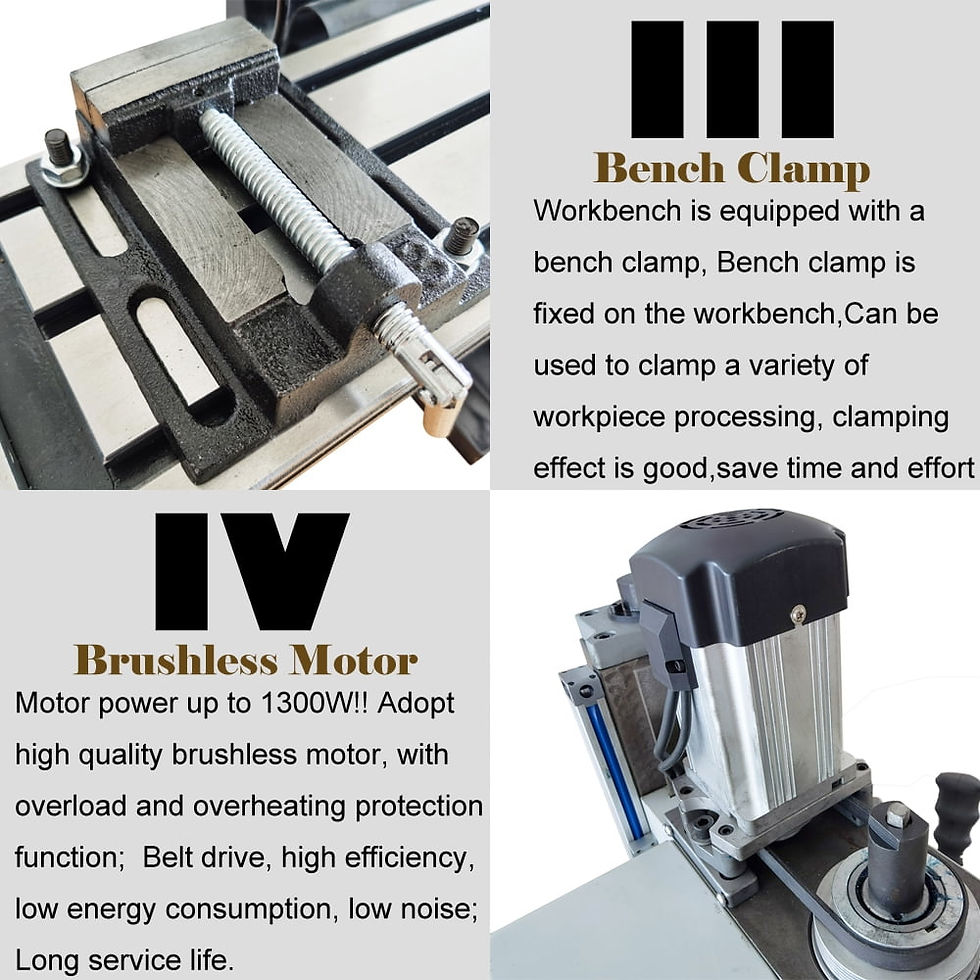

Bench clamp *1

Fork wrench *2

Drill chuck wrench *1

Oil can *1  Cross screwdriver *1

Straight screwdriver *1

Hexagon wrench *4

English manual *1
