DS18 SXE-4000.4 200x4 RMS @4 OHM Full-Range Class D 4-Channel Amplifier 4000 Watts Black

DS18s SXE series of amps was designed for users looking for an extreme increase to the quality of music reproduced by their vehicle. The SXE-4000.4D guarantees your sound systems speakers perform at their peaks on every use.

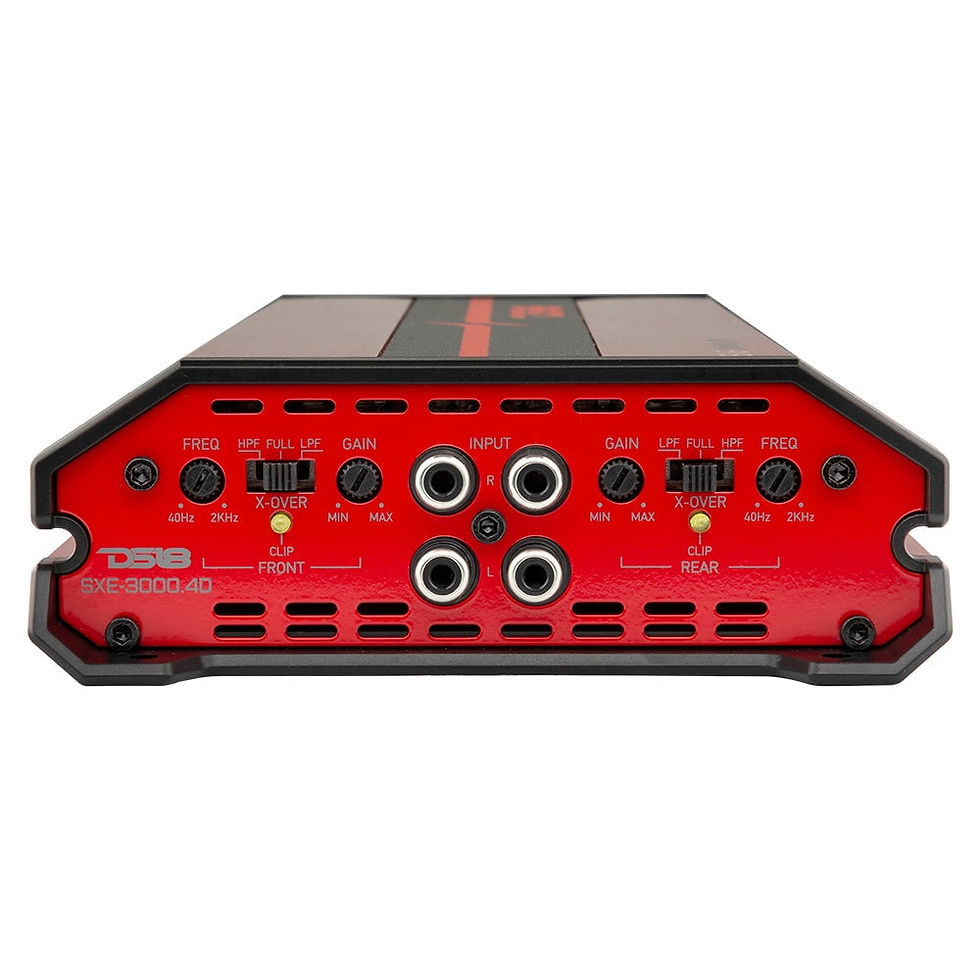

The SXE series of amplifier gives users the ability to tailor the audio reproduced by their vehicle to their personal listening preferences through the use of its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design: everything you need to take control of your listening experience.

As a Class D amplifier, the SXE series uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicles custom build: but, what it lacks in size it makes up for in power. The SXE-4000.4D has a power output of 750W x 2 CH bridged at 4-ohms, 430W x 4 CH at 2-ohms, 275W x 4 CH at 4-ohms: perfect power settings to supercharge any custom build.

This listing includes:
(1) DS18 4-Channel Car Amplifier SXE-4000.4D-BK

Total Watts (Peak): 4000W
RMS Power @ 4 OHM: 4 x 275W
RMS Power @ 2 OHM: 4 x 430W
RMS Power @ 1 OHM: N/A
RMS Power @ 4 OHM Bridge: 2 x 750W

AUDIO SPECIFICATIONS:
Frequency Response: 10Hz-20KHz
Signal To Noise Ratio: 90dB
Efficiency @ 4 OHM: 86%
Damping Factor: 140
Input Impedance: 20k
Channel Separation: 45dB
Total Harmonic Distortion (THD): 0.05%
Low Level Input Range: 200mV-5V
High Level Input: N/A
Selectable X-over: HPF/FULL/LPF
X-over Filter Range: 40HZ-2KHZ
Bass Boost Range: N/A
Bass Boost Frequency: N/A
Infrasonic Filter: N/A
Phase Selector: N/A

FEATURES:
Amplifier Class: Digital (D)
Amplifier Type: Stereo Full Range
Number Of Channels: 4
Minimum Impedance: 2 Ohm Stereo / 4 Ohm Bridge
Led Indicator: Power/Protect/Clip
Power Input Terminal Size: 4Ga
Fuse Size: External Fuse
Remote Level Control: N/A
Cooling Fan: N/A
Voltmeter: N/A
Thermal Protection: Yes(80C)
Over-Load Protection: Yes
Dc Output Protection: Yes
Short Circuit Output Protection: Yes
Voltage Input Protection: Yes(16.5v)
Clipping Protection: Yes
Body Color | Finish: Black Brushed Aluminium

DIMENSIONS:
Overall Length: 10.6 / 269mm
Overall Width: 5.51/ 140mm
Overall Height: 1.88 / 48mm
Heatsink Length: 9.1 / 232mm
Unit Weight: 2.05KG
